Data Collection TerminalsK12
Smart Field Data Collection Robust Terminal
Inquiry
Overview
Key Features
Parameters
Applications
Download
Related Products
Overview

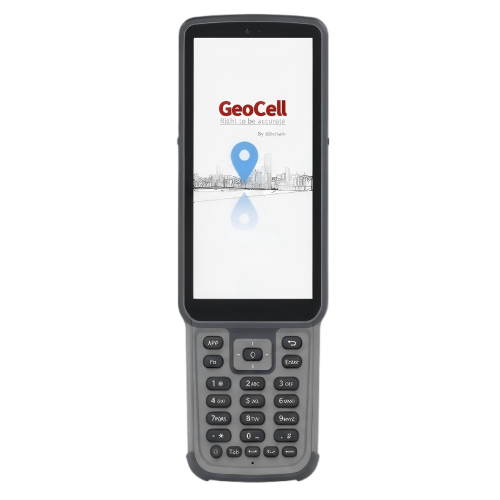

The handheld data collection terminal is solid and durable, suitable for use in construction sites with harsh conditions. Its solid appearance and anti-aging design and protection enable the equipment to maintain normal operation even in poor working conditions.
Key Features
Triple-Proof IP67 Design
IP67 design, no fear of interference from rain and dust, greatly improving the adaptability to the working environment.
Keyboard Support
The terminal adopts a keyboard design, which makes input faster, more accurate and more stable, avoiding mis-operation.
HD Large Screen
The terminal is equipped with capacitive HD hard screen of 5.5-inch, TP high aluminum white glass, 5-point touch, support gloves, gesture operation function, at resolution 720*1440.
Fast Charging Function
TYPE-C direct charging, supports 2A fast charging (5V/2A DC).
Specification Excerpts
Performances


Network modeGSM, WCDMA, TD-SCDMA, TDD/FDD-LTE
Data serviceLTE CAT4/HSPA/TD-SCDMA/EDGE/GPRS
Supported frequency band

GSM: 850 / 900 / 1800 / 1900

CDMA/EVDO: BC0/BC1

WCDMA: B1 / B2 / B5 / B8

TDD-LTE: B38 / B39 / B40 / B41

FDD-LTE: B1 / B3 / B5 / B7 / B8

Theoretical rate

LTE: CAT4 (150Mbps Downlink 50mbps Uplink) WCDMA: Category 24 HSDPA category 7 HSUPA

TD_SCDMA: category 14(downlink) category 6(uplink)

GSM: Class 12 GPRS, Edge

Operating systemAndroid 11 GMS
Memory4GB/64GB
Main screen size5.5'' IPS LCD 1440×720 pixel, 500nits sunlight readable
Touch screenCapacitive multi-touch
SIM card typex2 Nano-SIM,

x1 Micro SDXC up to 256GB (Micro SD and SIM2 cannot exist at the same time)

Main screen resolution720*1440
Camera pixel

Rear: 13 megapixels with auto-focus and flash

No front camera

Flash 4*4 high brightness flash



Physicals


WLAN function supports 2.4 GHz + 5 GHz, 802.11 a/b/g/n/ac
Data interface Type C USB 2.0
USB interface TYPE-C standard interface, supports 2A charging, data download, OTG and other functions
Bluetooth transmission BT5.1
External interface Side expansion USB interface
Three-proof function supports IP67 IEC 60529
Body color Grey and light Grey
Size 220mm × 77mm × 16mm
Working temperature -20 °C to 60 °C (-4 °F to 140 °F) MIL-STD-810G, Method 501.5/502.5 Procedure II
Storage temperature -30 °C to 70 °C (-22 °F to 158 °F) MIL-STD-810G, Method 501.5/502.5 Procedure I
Wristband supportYes


Electricals


Battery Standard 7700mAh/3.8V, built-in battery
Charging method 5V/2A DC charger
Fast charging QC3.0 fast cherger




Applications
Surveying Info Data Collection
