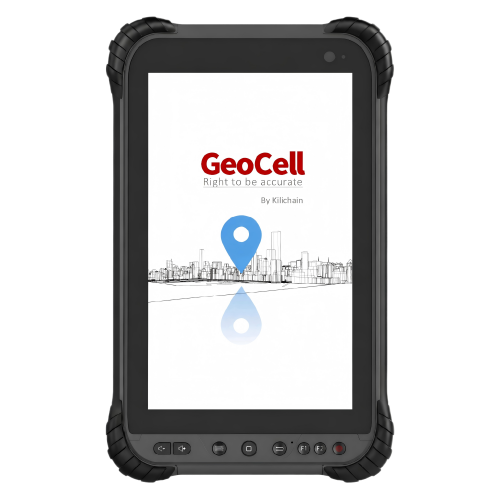

Smart Field Data Collection Robust Terminal
| Network mode | GSM,EVDO,WCDMA,TD-SCDMA,TDD-LTE,FDD-LTE |
| Data service | LTE CAT4/HSPA/TD-SCDMA/EDGE/GPRS |
| Supported frequency band | GSM:850/900/1800/1900 EVDO：BC0 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 TDD-LTE: Band38/Band39/Band40/Band41 FDD-LTE: Band1/band2/Band3/band4/band5/Band7/band8/band17/band20/band28A/band28B/band19/band26/band66 |
| Theoretical rate | LTE: CAT4 (150Mbps Downlink 50mbps Uplink) WCDMA: Category 24 HSDPA category 7 HSUPA TD_SCDMA: category 14(downlink) category 6(uplink) GSM: Class 12 GPRS, Edge |
| Operating system | Android 15 GMS |
| Memory | 8GB+128GB |
| Main screen size | 8" HD 1280*800 700Nits/ 1920*1200 500nits |
| Touch screen | Capacitive multi-touch interface for use with glovesand in wet conditions |
| SIM card type | Dual Nano sim & Dual standby |
| Main screen resolution | 1280*800 / 1920*1200 |
| Camera pixel | Camera:32M-OV32B40 Front Camera:5M-GC5035 |
| Flash | Flash LED*1 |
| WLAN function supports | 2.4GHz/5GHz, 802.11 a/b/g/n/ac/ax ready |
| Data interface | Type C USB 2.0 |
| USB interface | Type C, OTG/headset/NMEA |
| Bluetooth transmission | BT5.1 |
| External interface | USB, UART, I2C, GPIO, OTG, Charge |
| Three-proof function supports | IP68 IEC 60529 |
| Body color | Grey and light Grey |
| Size | 235mm × 146mm × 13mm |
| Working temperature | -20 °C to 60 °C |
| Storage temperature | -30 °C to 70 °C |
| Wristband support | No |
| Battery | 9000mAh |
| Charging method | 5V/2A DC charger |
| Fast charging | QC3.0 fast cherger |
