Data Collection TerminalsK11

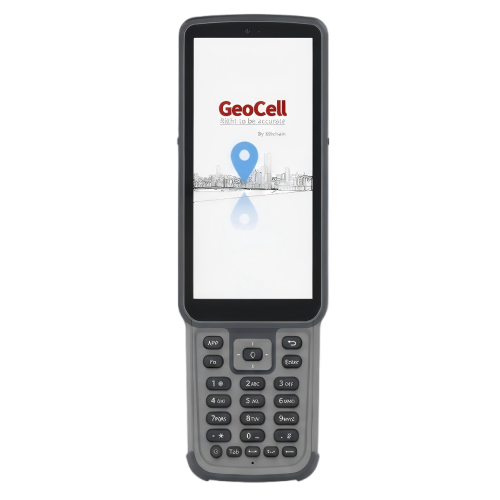

4G Smart Mapping Handheld Terminal
Inquiry
Overview
Key Features
Parameters
Applications
Download
Related Products
Overview
The handheld data collection terminal is solid and durable, suitable for use in construction sites with harsh conditions. Its solid appearance and anti-aging design and protection enable the equipment to maintain normal operation even in poor working conditions.
Key Features
Triple-Proof IP65 Design
IP65 design, no fear of interference from rain and dust, greatly improving the adaptability to the working environment.
Full Keyboard Support
The terminal adopts a full keyboard design, which makes input faster, more accurate and more stable, avoiding misoperation.
HD Large Screen
The terminal is equipped with capacitive HD hard screen of 5.45-inch, TP high aluminum white glass, 5-point touch, support gloves, gesture operation function, at resolution 720*1440.
Fast Charging Function
TYPE-C direct charging, supports 2A fast charging (9V2A).
Specification Excerpts
Performances


Network modeGSM, WCDMA, TD-SCDMA, TDD/FDD-LTE
Data serviceLTE CAT4/HSPA/TD-SCDMA/EDGE/GPRS
Supported frequency band

GSM: B2/B3/B5/B8

WCDMA: B1/B2/B5/B8

TD-SCDMA: B34/39

FDD-LTE: B1/2/3/5/7/8/20/28a&b

TDD-LTE: B34/B38/39/40/41(100M)

Theoretical rate

LTE: CAT4 (150Mbps Downlink 50mbps Uplink) WCDMA: Category 24 HSDPA category 7 HSUPA

TD_SCDMA: category 14(downlink) category 6(uplink)

GSM: Class 12 GPRS, Edge

Operating systemAndroid 11
Memory64GB ROM + 6GB RAM
Main screen size5.45-inch HD screen
Touch screenCapacitive screen, 5-point touch, support gloves
SIM card typeDual Nano Sim card
Main screen resolution720*1440
Camera pixel Rear 1300W HD camera
Flash 4*4 high brightness flash


Physicals


WLAN function supports 2.4G/5.0G dual-mode WIFI
Data interface Type C USB 2.0
USB interface TYPE-C standard interface, supports 2A charging, data download, OTG and other functions
Bluetooth transmission BT5.0
External interface Side expansion USB interface
Three-proof function supports IP65 waterproof, IP65 dustproof, professional shockproof
Body color Black
Size 224*78.5*17 (mm)
Working temperature -20 ℃ to +55 ℃ (-4℉ to +131℉）
Storage temperature -40 ℃ to +70 ℃ (-40℉ to +158℉)
Wristband supportYes


Electricals


Battery 6600 mAh
Charging method TYPE-C direct charging
Fast charging Support 2A fast charging (9V2A)


Applications

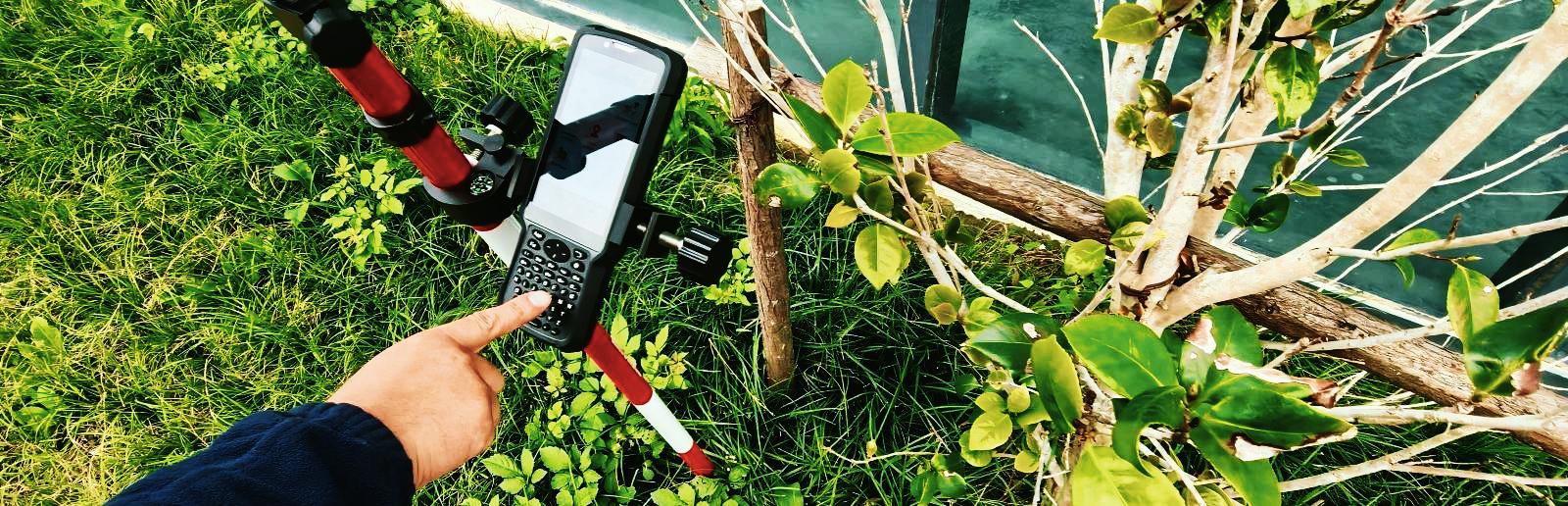

Surveying Info Data Collection
