Overview
The CS30 is a versatile GNSS network reference station receiver featuring multiple communication methods. It supports seamless switching between wired internet and 4G wireless networks, ensuring high reliability and stability in network communication. Widely used for the permanent reference or base station.
Key Features
Convenient Operation
The integrated Bluetooth module supports the receiver's control and configuration via a mobile app.
Durable Design
It has an IP67 dustproof and waterproof rating, withstanding 2m drops, ensuring stable operation in harsh environments.
Stable Communication
Intelligent switching between wired internet and 4G wireless network ensures a continuous, uninterrupted connection.
High-Precision Positioning
Utilizes multi-system, multi-frequency high-precision board cards to ensure positioning accuracy and reliability.
Specification Excerpts
Performances
GPSL1C/A/L1C/L2C/L2P（Y）/L5
GLONASSG1/G2/G3
GalileoE1/E5a/E5b/E6
BDSB1I/B2I/B3I/ B1C/B2a/B2b
QZSSL1C/A/L1C/L2C/L5
SBASL1C/A
NavICL5
Cold start time＜12s
Data update rate20Hz
Initialization time<5s (typical value)
RTK initialization reliability>99.9%
Real time

kinematics (RTK)

Horizontal: 8mm+1ppm(RMS)

Vertical: 15mm+1ppm(RMS)

Post-processing static

Horizontal: 2.5mm+1ppm(RMS)

Vertical: 5mm+1ppm(RMS)


Physicals
Ethernet Port1×RJ45 (100M Ethernet)
4GGSM 4G module
Network ProtocolTCP/NTRIP


Electricals
Power Consumption≤3.0W
Power Supply Voltage9~36V DC

*All specifications are subject to change without notice.

(1) Accuracy depends on the open sky, free of multipaths, optimal GNSS geometry and atmospheric condition. (2) Battery life is subject

to the particular operating temperature.


Applications

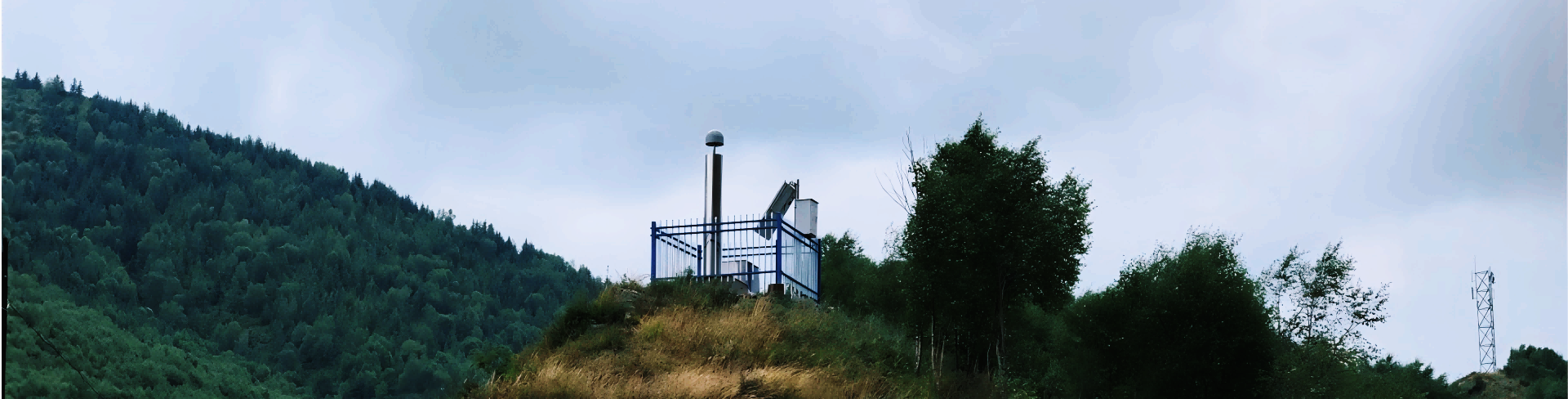

GNSS CORS Networks
