GNSS SensorsCS80
GPS, BDS, GLONASS, Galileo, QZSS,
IRNSS, SBAS
Support L-Band and PPP
Support INS+GNSS navigation
High-performance floating-point arithmetic
Internal adaptive anti-interference algorithm
Inquiry
Overview
Key Features
Parameters
Applications
Download
Related Products
Overview

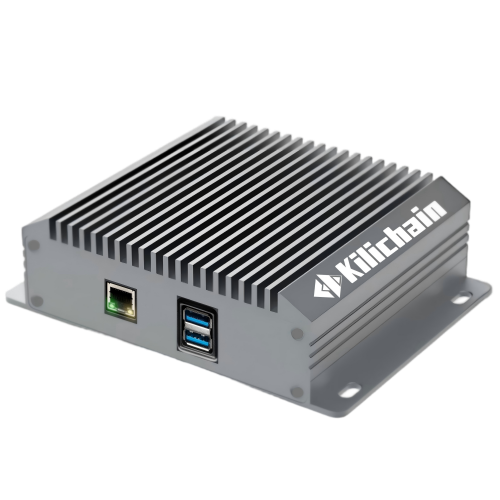

The CS80 features a more scientifically designed heat dissipation exterior, enabling stable operation even under prolonged high-temperature conditions. As a GNSS network reference station receiver, the CS80 supports multiple communication methods, facilitating application and service in various environments. It can seamlessly switch between wired internet and 4G wireless networks, ensuring high reliability and stability of network communication. It is widely used as a fixed reference station or base station. Its advanced anti-interference technology further enhances signal reliability and stability.
Key Features
Convenient Operation
The integrated WiFi module supports the receiver's control and configuration via a mobile terminal on web page.
Durable Design
It has an IP67 dustproof and waterproof rating, withstanding 2m drops, ensuring stable operation in harsh environments.
Stable Communication
Intelligent switching between wired internet and 4G wireless network ensures a continuous, uninterrupted connection.
High-Precision Positioning
Utilizes multi-system, multi-frequency high-precision board cards to ensure positioning accuracy and reliability.
Specification Excerpts
Performances
GPSL1C/A/L1C/L2C/L2PY/L5
GLONASSG1, G2, G3*
GalileoE1, E5b, E5a, E5 AltBoC, E6c1
BDSBDS-2: B1I, B2I, B3I, BDS-3: B1I, B3I, B1C, B2a, B2b
QZSSL1C/A, L2C, L5, L1C
SBASL1C/A, L5
IRNSS*L5
Cold start time20s
Data update rate1 Hz, 2 Hz, 5 Hz, 10 Hz, 20Hz*
Initialization time<5s (typical value)
RTK initialization reliability>99.9%
Real time

kinematics (RTK)

Horizontal: 8mm+1ppm(RMS)

Vertical: 15mm+1ppm(RMS)

Post-processing static

Horizontal: 2.5mm+1ppm(RMS)

Vertical: 5mm+1ppm(RMS)


Physicals
Ethernet Port1×RJ45 (100M Ethernet)
4GGSM 4G module
Network ProtocolTCP/NTRIP
Weight280 g

Size

124*168*46mm






Electricals
Power Consumption≤5.0W
Power Supply Voltage5V DC

*All specifications are subject to change without notice.

(1) Accuracy depends on the open sky, free of multipaths, optimal GNSS geometry and atmospheric condition.

Applications
GNSS CORS Networks
