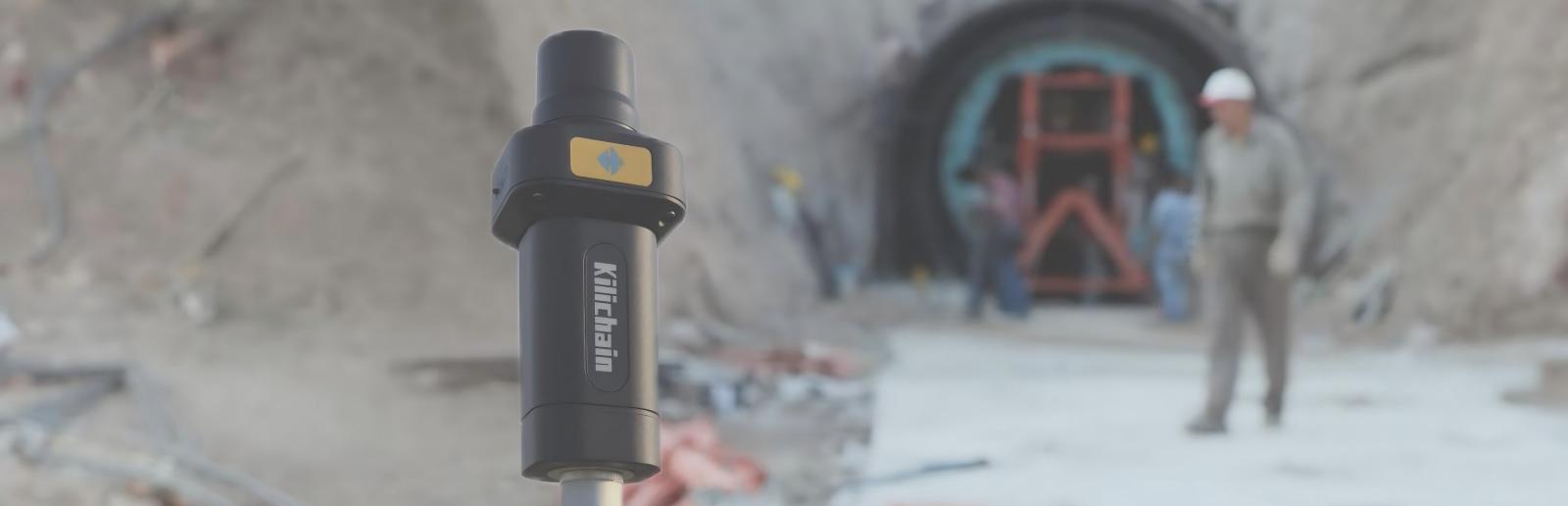

Palm3-GNSS Smart Antennas-Kilichain

Overview

Palm3 is in small size and high integration, the system can be integrated with high capacity battery,GNSs antenna, satellite positioning module,Bluetooth,and more; It is with high precision and low power consumption, adopting five constellations and six frequencies such as BDS,GPS,GLONASS,Galileo,QZSS,etc.,It can work in complex environments, ensuring positioning accuracy. It adopts the universal standard TYPE-C charging interface, supports rechargeable battery charging and TYPE-C upgrade.

Key Features

The Power of GNSS+IMU RTK Technology

The precise coordinates can be measured even if the pole body is tilted and the point measuring efficiency will be increased by 20%, and the staking efficiency increased by 30%.

Full Constellation Multi-Band

Fully support BDS, GPS, GLONASS and Galileo systems, adapt to a variety of complex and harsh environments, ensuring a centimeter-level positioning accuracy.

Simplified Design

Simple design, focused on surveying and mapping. With careful surveying and mapping, the product simplifies the core functions to facilitate users to use efficiently and improve work efficiency. It is compact and light, weighing only 550 grams.

Network Connection

The device is professionally used for CORS network connection high-precision measurement terminals, supports rapid acquisition of network differential data, and is a good tool for urban construction and planning. It supports matching with most Android apps via built-in 4.0 Bluetooth module, supporting a variety of Android cellphone connection.

Specification Excerpts

Performances

Channel	1408
GPS	L1C/A, LIC, L2P(Y), L2C, L5
GLONASS	G1,G2,G3
Galileo	E1, E5a, E5b, E6
BDS	B11, B2I, B3I, B1C, B2a , B2b
QZSS	L1C/A,L1C,L2C,L5
SBAS	L1C/A
Positioning rate	Default 1 HZ, Maximum 20 HZ
Real time kinematics (RTK)	Horizontal: 8mm + 1ppm RMS Vertical: 15mm + 1ppm RMS Initialization time: < 5 s Initialization reliability: > 99.9%
Single point	Horizontal: 1.5m Vertical: 2.5m

Physicals

Size	Φ165mm×70mm
Weight	550g
Working temperature	-45°C to +75°C (-49°F to +167°F)
Storage temperature	-55°C to +85°C (-67°F to +185°F)

Electricals

Input voltage	DC5V ≤1A
Battery capacity	4800mAh
Power consumption	1W
Battery life	≥16 hours

*All specifications are subject to change without notice.

(1) Accuracy depends on the open sky, free of multipaths, optimal GNSS geometry and atmospheric condition. (2) Battery life is subject

to the particular operating temperature.
