KAN2018-GNSS Antennas-Kilichain | Right to be accurate

Overview

The lightweight design makes the after-installation design extremely simple, does not need to make major changes to the existing walls or facilities, and the IP67 protection level also ensures that the antenna can operate outdoors for a long time and receive signals, which is widely used in clock synchronization systems.

Key Features

Waterproof and Dustproof

The antenna is hermetically sealed and IP67 compliant.

Easy to Install

Standard connection port and holes are reserved for feeder installation.

Light to Be Installed at Various Sites

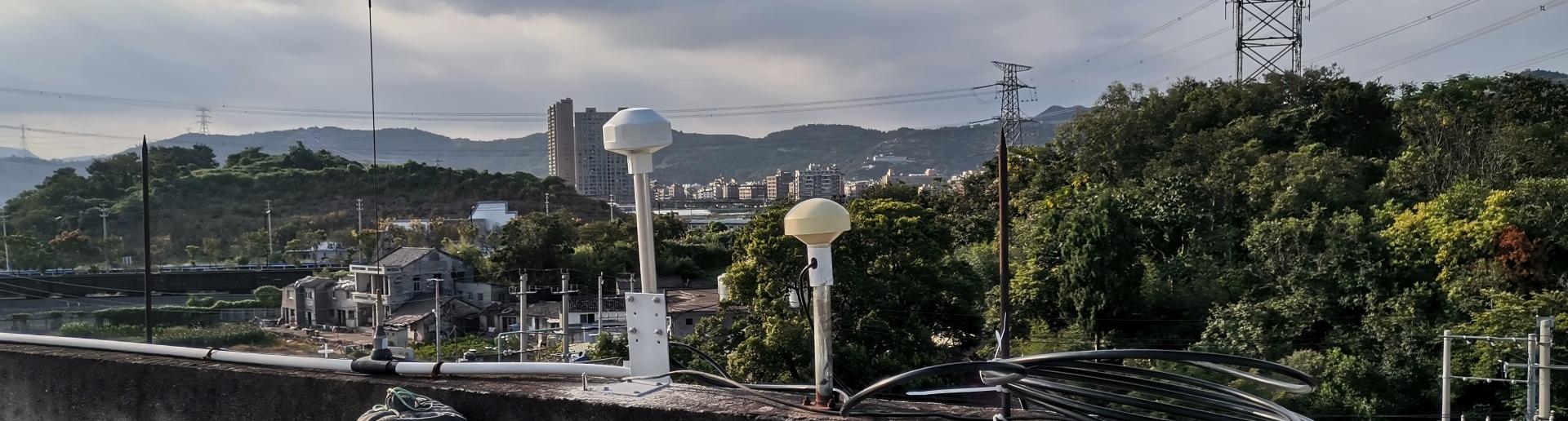

The head is light and robust to be suitable in different installation environments, especially when it needs to be installed on a top roof.

Stable Signal Capture

Stable acquisition of satellite signals to ensure the transmission of synchronous signals to the greatest extent.

Specification Excerpts

Performances

Frequency range	1559.052-1602MHz 1164-1259MHz
LAN Gain	B1/L1/G1/E1/E2: 40±2dB B2/L2/G2/L5/E5a/E5b: 40±2dB
Polarization	RHCP
Axial ratio	≤ 3dB
Horizontal coverage angle	360°
Vertival coverage angle	5°-90°
Impedance	50Ω

Physicals

Size	Φ96mm
Weight	≤300g
Connector	BNC or others
Cable	RG58 or others
Mounting method	Screw
Radome material	ABS
Working temperature	-40℃ to +85℃ (-40℉ to +185℉)
Storage temperature	-40℃ to +85℃ (-40℉ to +185℉)
Ingress protection	IP67

Electricals

Supply voltage	DC 3.3V - 12V
Current consumption	≤ 60mA
