Overview

GeoCell software is an engineering surveying application software developed by Kilichain based on GNSS high-precision location application, the developer based on years of surveying and mapping development and market experience accumulation, combined with a large number of industry users' habits and Android operation style habits to integrate. The software has a simple operation, easy-to-use humanized operation process, with high-precision position measurement and acquisition, point and line stakeout, powerful road design and construction stakeout functions and CAD drawing stakeout functions, convenient display of function menus, conducive to user customized design and other characteristics.

Key Features

Abundant Formats for Data Export & Import

Directly import and export files with frequently used formats and customized formats.

Support Base Maps

Supports import of alerent formats of base maps including but not limited to AutocAD formats (DXF, DWG), SHP and Land XML, which provides a more user-fiendly experience during fieldwork.

CAD Function

The powerful CAD function built in supports the import, export, creation, and editing of CAD graphics on and out of fields.

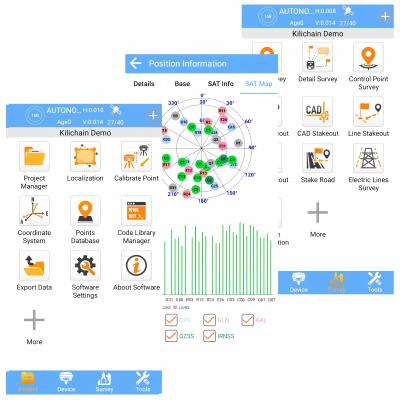

Convenient UI

Freely choose the desired disploy style, including list, grid and customized style, and enjoy easy operations with graphic interaction including COGO calculation, QR code
scanning, FTP transmission, etc.

Specification Excerpts

Performances

Platform	Android
Update	Online or Offline
Activation	Online activation
Bluetooth, WiFi, Serial port,	Support
Online map	Google street map Google satellite map Open street map
Offline map	SHP, DWG,DXF, XML,
Predefined	A list of coordinate systems
Localization	4 Parameters, 7 Parameters
Geoid files	GGF, UGF, SGF, cutomized EDS
Grid files	GSB, cutomized GDS
Sharing function	Sharing with QR code or saving locally
RTCM1021-1027	Support
Grid to ground	Support
Export	CSV, DAT, DXF, KML, GPX, HTML...
Import	CSV, DAT, TXT, DXF, KML...
CAD entity	Line, polyline, rectangle, polygon, circle, arc, spline
GIS function	Support
CAD format	DXF, DWG, XML
CAD drawing	Support
CAD calculation	Angle, distance and area
Stakeout target	Point, line, road, cross section
Stakeout reference	North of forward direction
Voice	Support voice prompt
